[ 뛰어난 촬영속도 ]

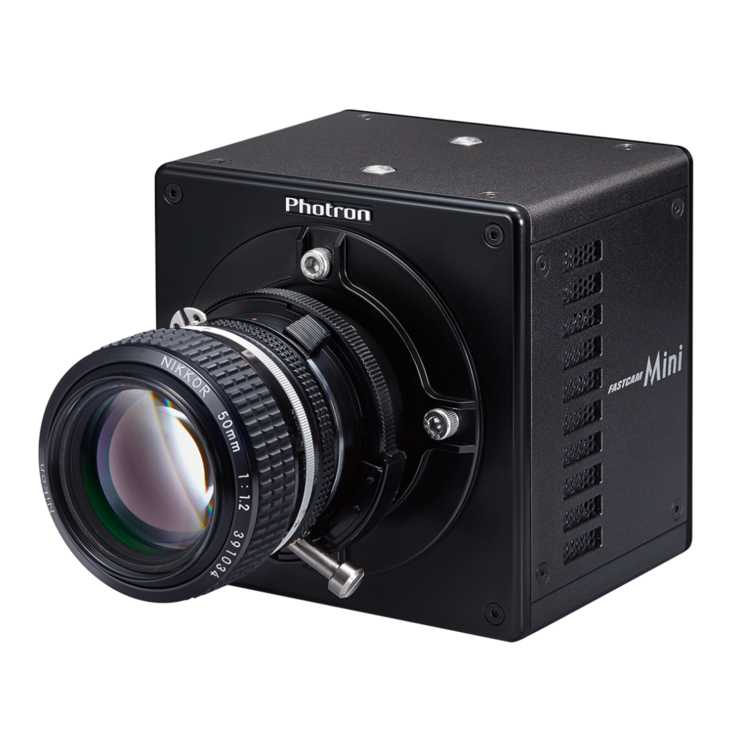

FASTCAM Mini UX50은 풀해상도 (1280 x 1024 pixels) 에서 2,000fps, 최대 160,000fps 이상의 촬영속도를 실현하는 메가픽셀 디지털고속카메라입니다.
[ 뛰어난 이미지센서 ]
[ 가볍고 작은 크기 ]
[ 카메라 장점 ]
• 다양한 해상도와 촬영속도의 조합으로 파워풀한 고속카메라 성능
- 2,000 fps at 1,280 x 1,024 pixels resolution
- 5,000 fps at 1,280 x 488 pixels resolution
- 100,000 fps at 1280 x 24 pixels resolution
• 초당 최대 160,000장 이상 촬영 가능
• 시장을 선도하는 카메라 감도
- ISO 6,400 monochrome
- ISO 5,000 color
• 잔상없는 선명한 이미지를 얻게 해주는 4us의 최소 노출
• 작고 가벼운 고속카메라 120 x 120 x 90mm, 1.5kg

• Materials Science
• Defense and Aerospace research
• Life Science
• Biomechanics
• Fluid dynamics (PIV).
• Off board automotive safety testing
[ 사양 ]
- 센서, 색상 : 12-bit CMOS/흑백, 36-bit/컬러
- 기본분해능 : (가로)1,280 x (세로)1,024 px @ 2,000 fps
- 분해능 : (가로)1,280 x (세로)720 px @ 2,500 fps
- 분해능 : (가로)640 x (세로)480 px @ 5,120 fps / (가로)640 x (세로)240 px @ 10,000 fps
- 최고 촬영속도 : 160,000 fps(축소분해능)
- 화소크기 : (가로)10 x (세로)10 μm
- 최소노출시간 : 4μs
- Low-light mode for initial set up of camera position and focus
- 렌즈마운트 : F/G-mount and C-mount
- 내충격성(High-G) : Tested to 100G, 10ms, 6 axis
- 콘트롤 : PC
- 인터페이스 : Gigabit Ethernet
- 디지털 영상 : JPEG, AVI, TIFF, BMP, RAW, PNG and FTIF. Images can be saved with or without image or comment data
- 메모리 : 4GB(기본) / 8GB(옵션) / 16GB(옵션)
- 트리거 : 접점, TTL 5Vp-p
- 촬영모드 : Start, Center, End, Manual, Random
- 크기 및 무게 : 120mmH x 120mmW x 90mmD, 1.5kg
