Graphtec B-564SL
GL840-M 확장 터미널 스크류리스 타입
측정 범위
전압
20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V, and 1-5V F.S. (Full Scale)
열전대
Type: K, J, E, T, R, S, B, N, W (WRe5-26)
Range: 100, 500, 2000 ºC (*10)
RTD
Type: Pt100, Pt1000 (IEC751), JPt100 (JIS)
Range: 100, 500, 2000 ºC (*10)
습도
0 to 100 % RH – using the humidity sensor (option B-530)
필터
Off, 2, 5, 10, 20, 40 (moving average in selected number)
A/D컨버터
Sigma-Delta type, 16 bits (effective resolution: 1/40000 of the measuring full range)
최대 입력 전압
(+) / (-) 터미널 간 - 20 mV to 2 V range: 60 Vp-p, 5 V to 100 V range: 110 Vp-p
((-) / (-)) - 60 Vp-p
채널/GND - 60 Vp-p

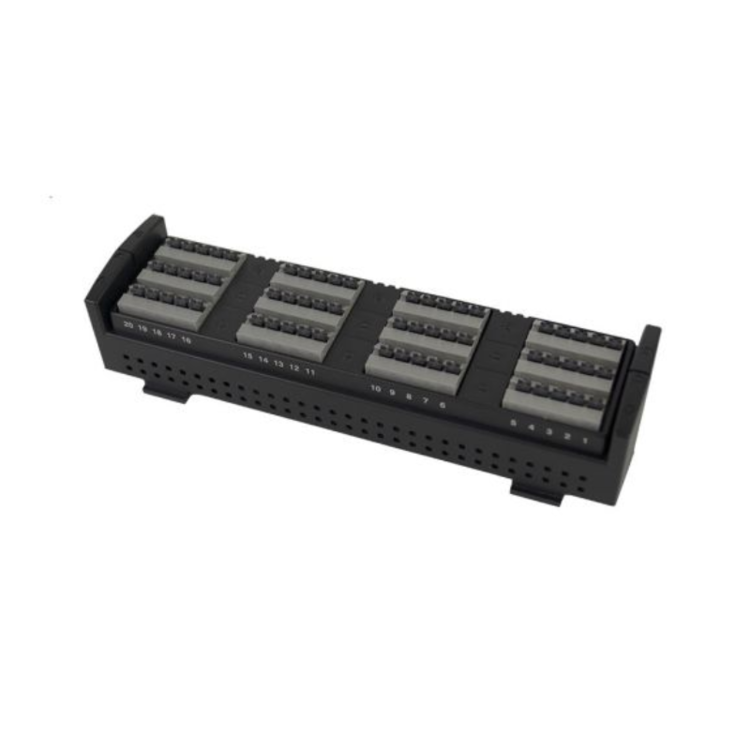

[B-564SL 실물 이미지]
Graphtec B-564SL
GL840-M 확장 터미널 스크류리스 타입
측정 범위
전압
20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V, and 1-5V F.S. (Full Scale)
열전대
Type: K, J, E, T, R, S, B, N, W (WRe5-26)
Range: 100, 500, 2000 ºC (*10)
RTD
Type: Pt100, Pt1000 (IEC751), JPt100 (JIS)
Range: 100, 500, 2000 ºC (*10)
습도
0 to 100 % RH – using the humidity sensor (option B-530)
필터
Off, 2, 5, 10, 20, 40 (moving average in selected number)
A/D컨버터
Sigma-Delta type, 16 bits (effective resolution: 1/40000 of the measuring full range)
최대 입력 전압
(+) / (-) 터미널 간 - 20 mV to 2 V range: 60 Vp-p, 5 V to 100 V range: 110 Vp-p
((-) / (-)) - 60 Vp-p
채널/GND - 60 Vp-p
[B-564SL 실물 이미지]
